Indoor LED Screen
Galaxy LED Panel‘s Indoor LED Screen delivers HD clarity with a high refresh rate, seamless splicing, and flexible, removable design for exceptional indoor visuals, even at close distances.
Models & Specifications
We offer a range of options to meet diverse needs, providing detailed information on performance, dimensions,
and capabilities to help you choose the best solution for your application.
P1.6
| Pitch Pixel | 1.6mm |
|---|---|
| Density LED | 360000pixel/m2 |
| Lamp | SMD1010 |
| Brightness | 800cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 240 x 240 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 4 kg |
| Material | Aluminium |
| Drive Mood | 1/24 scan |
| Power Consumption | 400w |
| Max Power Consumption | 800w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |
P2.5
| Pitch Pixel | 2.5mm |
|---|---|
| Density LED | 250000pixel/m2 |
| Lamp | SMD2121 |
| Brightness | 800cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 160 x 160 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 4.3 kg |
| Drive Mood | 1/32 scan |
| Power Consumption | 500w |
| Max Power Consumption | 1000w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |
P3
| Pitch Pixel | 3mm |
|---|---|
| Density LED | 250000pixel/m2 |
| Lamp | SMD2121 |
| Brightness | 1300cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 192 x 192 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 6 kg |
| Drive Mood | 1/32 scan |
| Power Consumption | 350w |
| Max Power Consumption | 950w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |
P4
| Pitch Pixel | 4mm |
|---|---|
| Density LED | 62500pixel/m2 |
| Lamp | SMD2020 |
| Brightness | 1600cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 240 x 240 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 8 kg |
| Material | Aluminium |
| Drive Mood | 1/15 scan |
| Power Consumption | 340w |
| Max Power Consumption | 600w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |
P4.8
| Pitch Pixel | 4.8mm |
|---|---|
| Density LED | 43402pixel/m2 |
| Lamp | SMD3528 |
| Brightness | 3000cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 240 x 240 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 8 kg |
| Material | Aluminium |
| Drive Mood | 1/10 scan |
| Power Consumption | 450w |
| Max Power Consumption | 950w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |
P5
| Pitch Pixel | 5mm |
|---|---|
| Density LED | 40000pixel/m2 |
| Lamp | SMD3528 |
| Brightness | 1500cd |
| Refresh Rate | > 1400Hz |
| Grey Level | 14bit |
| Viewing Angle | 120 / 120 |
| Module | 160 x 160 |
| Size Cabinet | 480 x 480 |
| Weight Cabinet | 8 kg |
| Material | Aluminium |
| Drive Mood | 1/16 scan |
| Power Consumption | 300w |
| Max Power Consumption | 600w |
| Control System | Linsn / Nova |
| IP Level | IP 43 |
| Life Span | 100,000 hours |

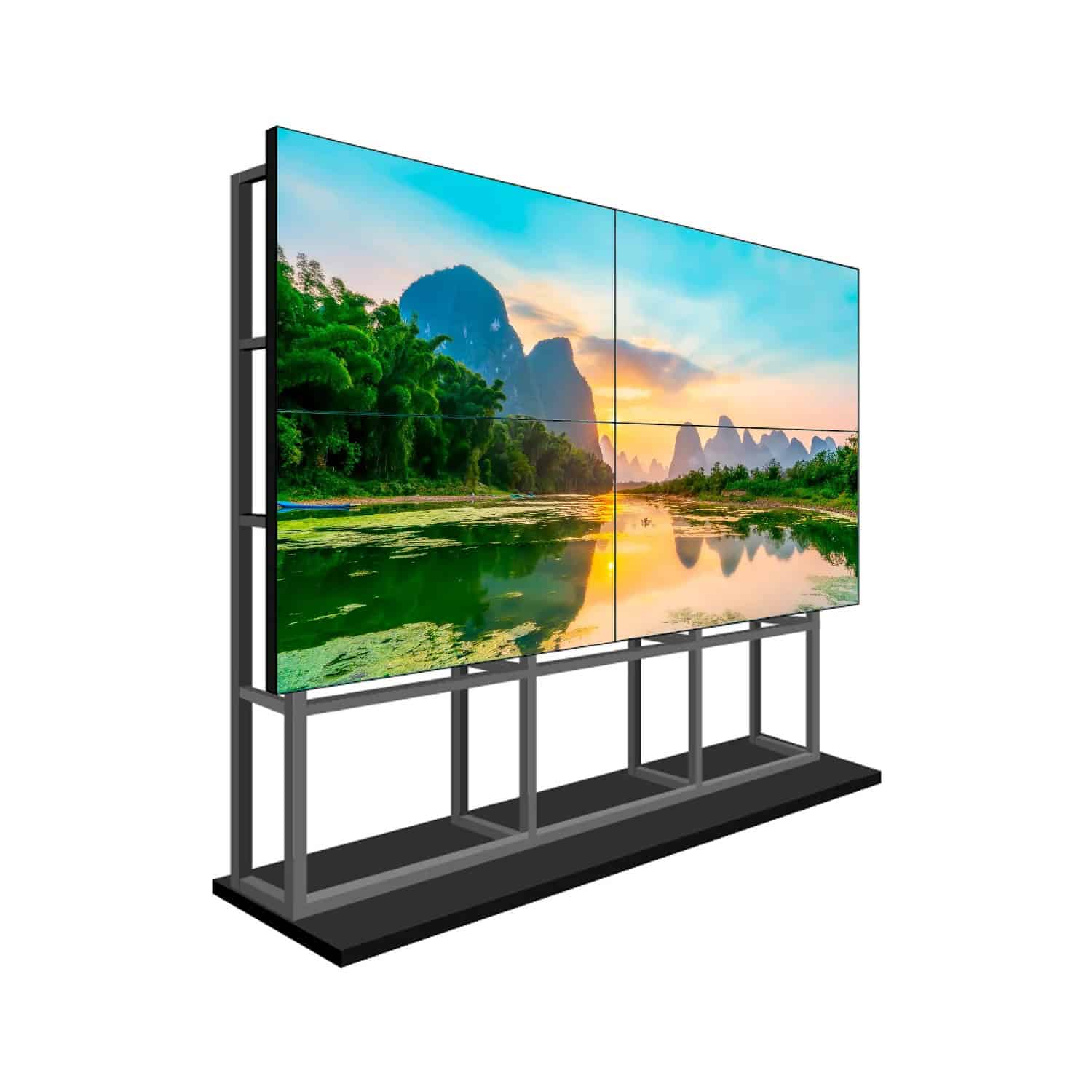

Flawless Integration & Lightweight Design
⦿ Built for fixed installations, the precise and durable mechanical structure ensures a seamless, gap-free connection between cabinets. Despite its solid build, the unit remains lightweight at just 15kg—including connectors and cables—for easy handling and setup.

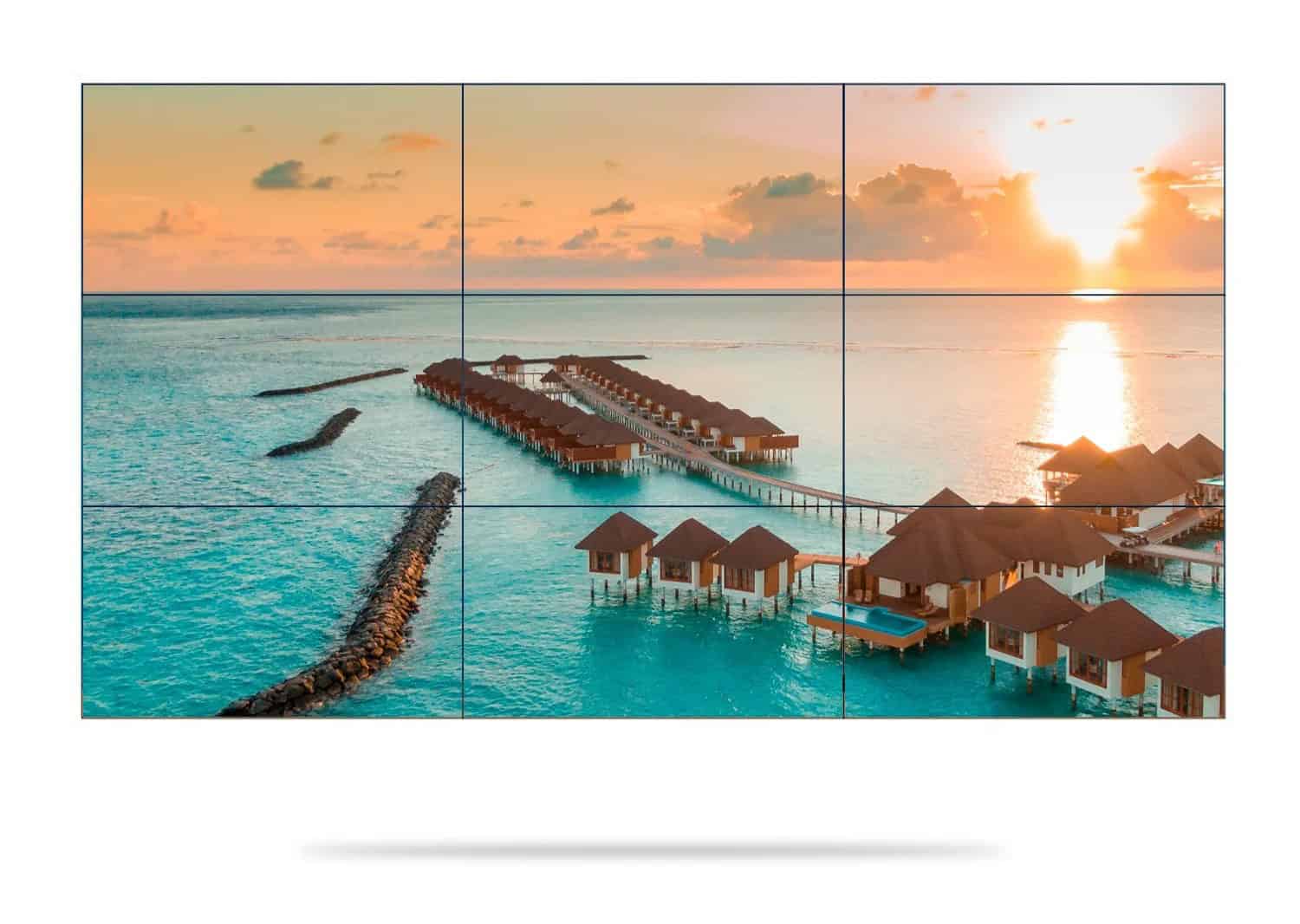

Modern Display Solution
⦿ A superior replacement for seamless LCDs and projection systems, this display offers high-quality visual performance ideal for information displays, brand promotion, advertising, and more.

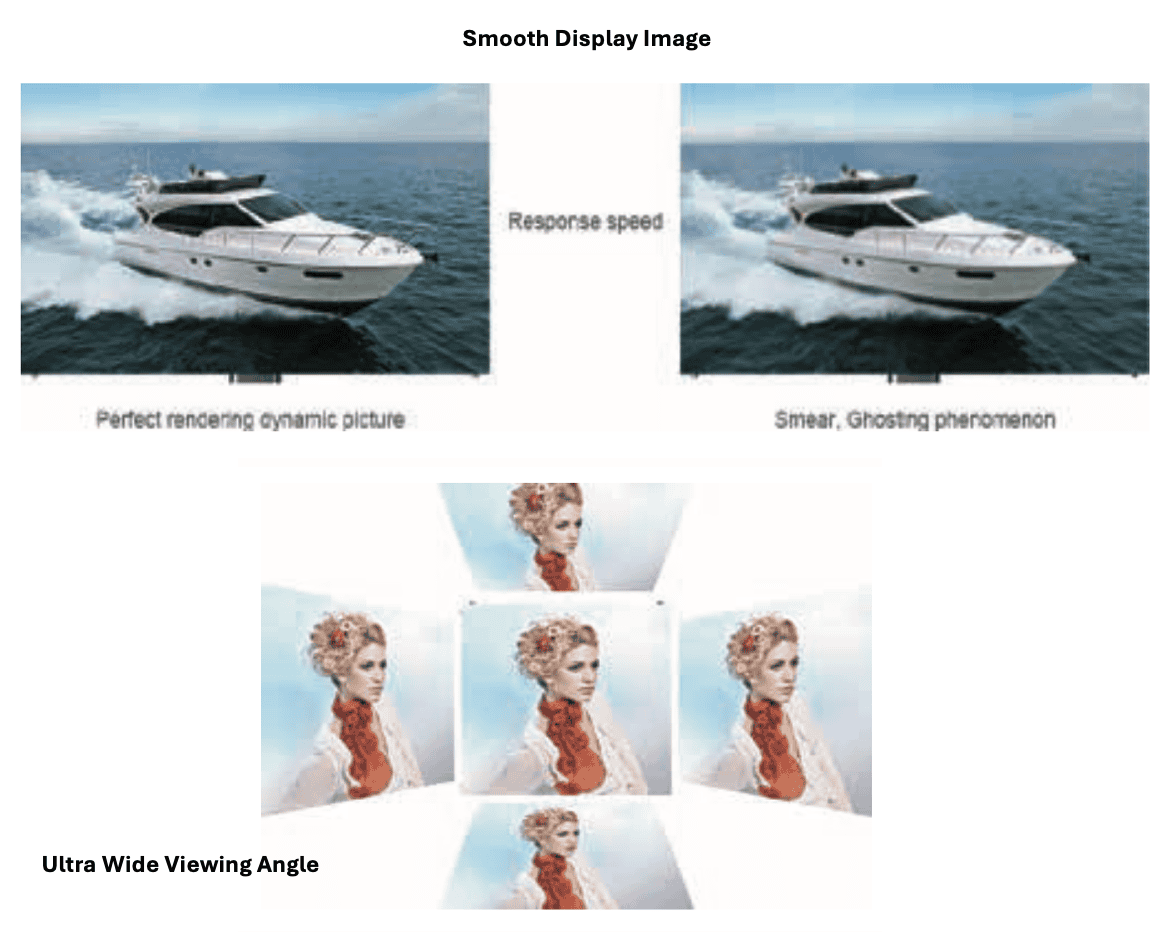

Smooth Display Image
Indoor LED display provides smooth imagery with a 1400Hz refresh rate, even under 1/2000 shutter speed in professional camera shots, fully supporting live feed switching requirements.
Ultra Wide Viewing Angle
With a 160-degree viewing angle both horizontally and vertically, our LED display provides natural, clear images from any direction.

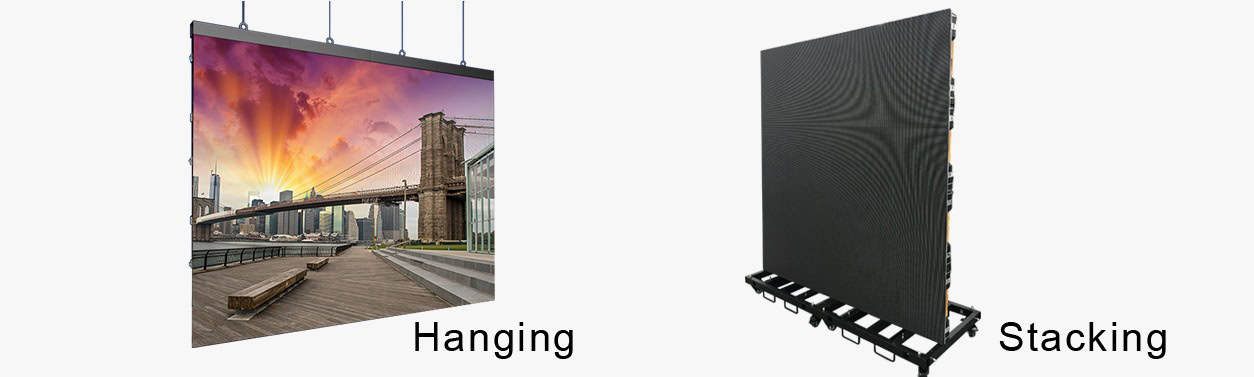

Hanging and Stacking Installation
⦿ Offers flexible setup options with support for both overhead hanging and ground stacking configurations.
⦿ Ensures a stable and secure display structure, adaptable to various environments and layout changes.
⦿ Designed for quick adjustments and optimal viewing angles in dynamic settings.
⦿ Ideal for events, exhibitions, and other scenarios that require versatile installation solutions.

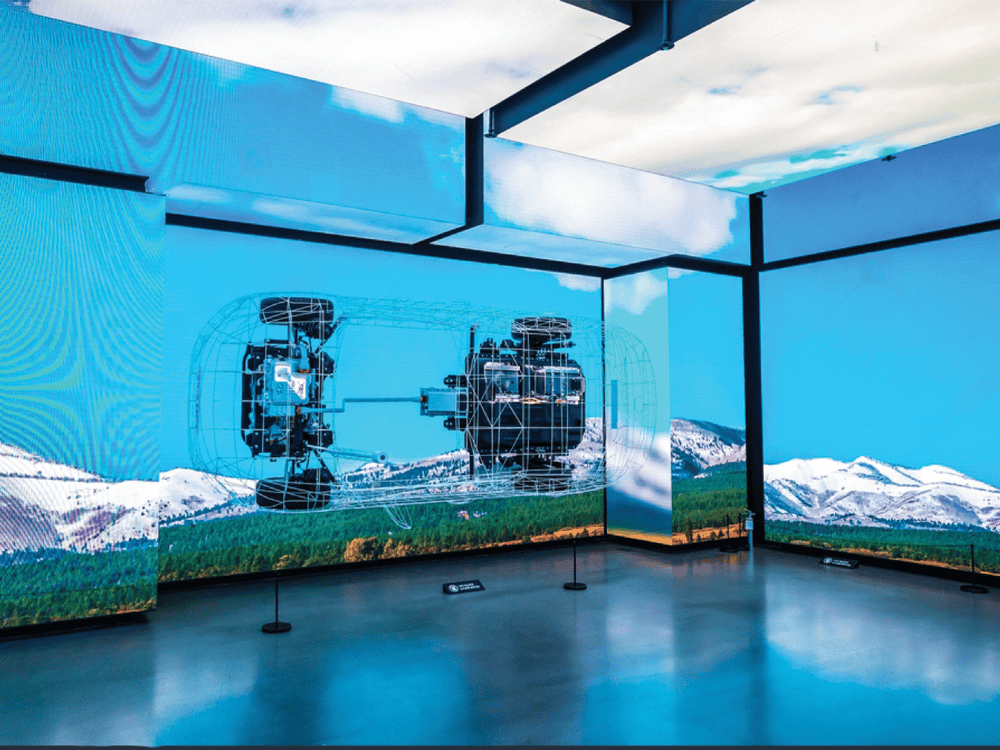

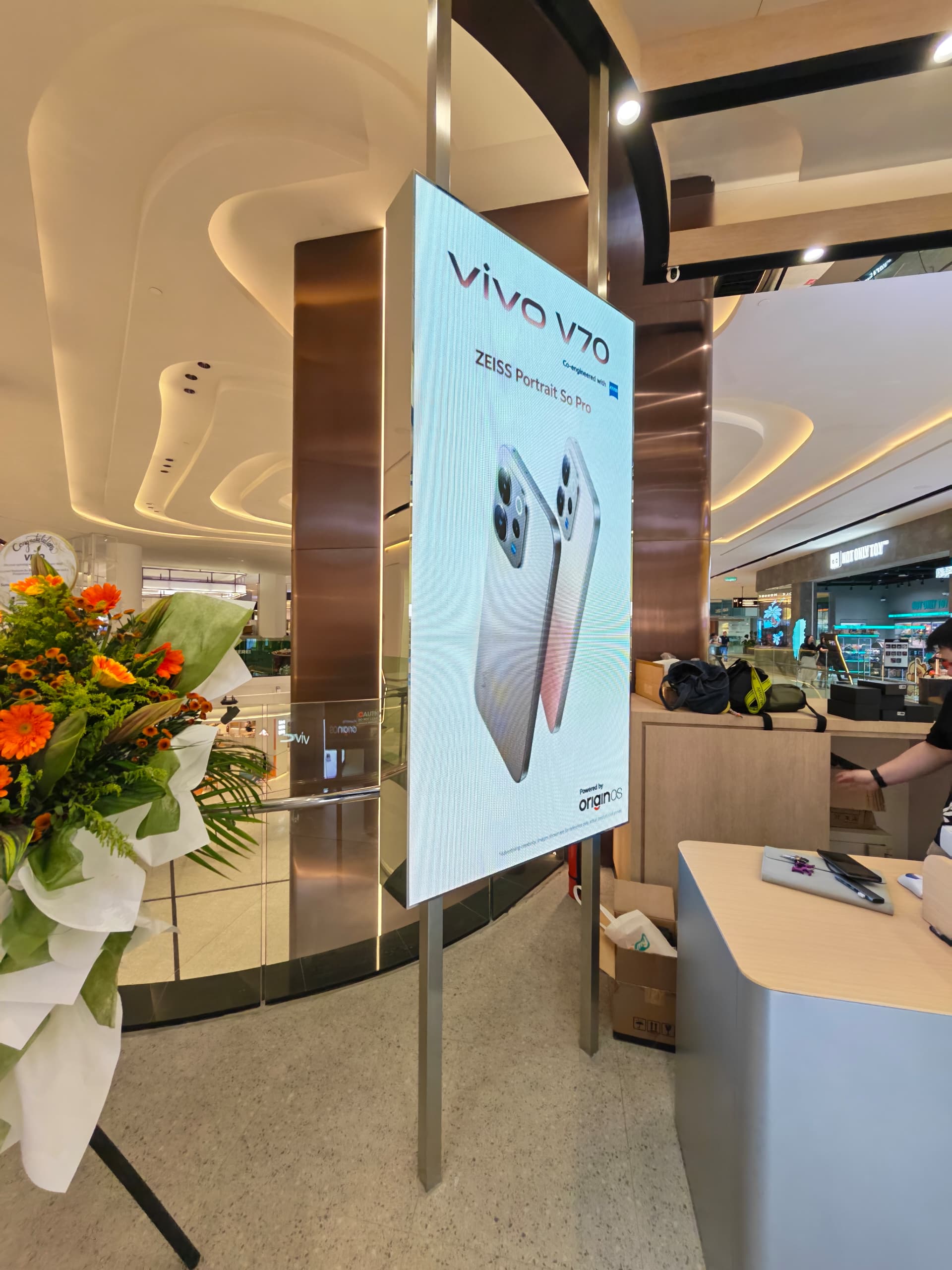

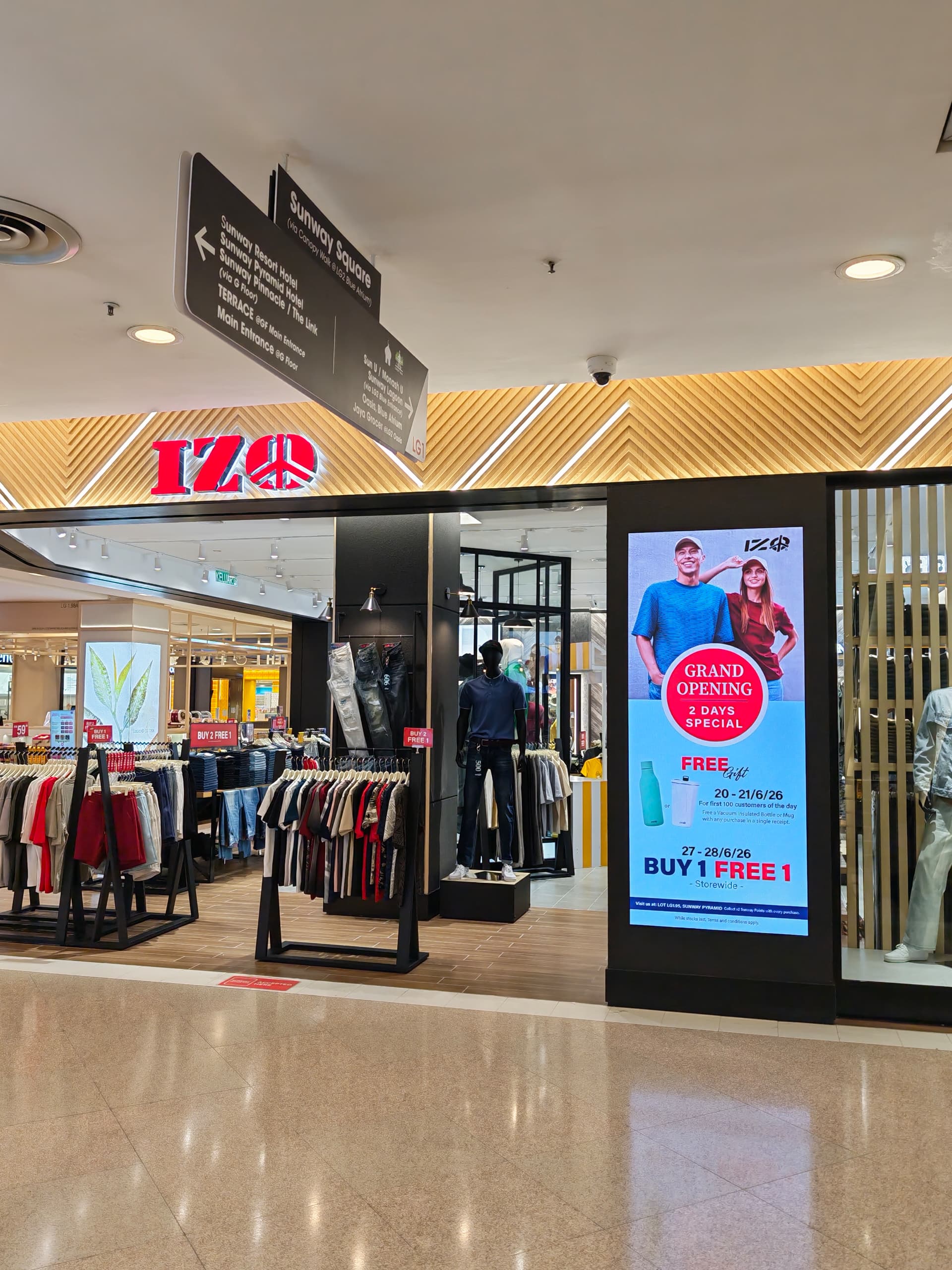

Indoor LED Display
Applications
Our Indoor LED Displays’ high-resolution clarity and dynamic capabilities make
them perfect for any indoor setting where impactful visuals are essential.
Why Choose
Our Indoor LED Screen?
Our Indoor LED screens deliver high resolution, seamless installation,
and exceptional image clarity, perfect for any indoor environment.
High Resolution & Pixel Density
Features a small pixel pitch, ensuring high resolution and sharp, detailed visuals, even up close.
Ultra-High Brightness & Durability
Ultra-high brightness with low attenuation ensures clear visibility, while durable design offers reliable performance in harsh weather.
Slim & Precise Design
Features an ultra-thin aluminium design that ensures high precision, easy installation and maintenance, and modern appearance.
Frequently Asked Question (FAQs)
What is the optimal viewing distance for an LED wall?
The ideal viewing distance is generally 2-3 times the pixel pitch in meters. For instance, a narrow pixel pitch of 2 allows viewing from 4 meters away, while a pixel pitch of 10 requires at least 20 meters for optimal detail.
What is the pixel pitch of the LED Screen?
Pixel pitch is the center-to-center distance between adjacent pixels, measured in millimeters. Simply put, it indicates the gap between the pixels of the LED display. A smaller pixel pitch indicates less space between pixels and a higher pixel count, which leads to improved resolution and higher image quality. The figure below shows the pixel pitch for a high-resolution SMD LED module and a high-resolution DIP LED module.
What is the effect of pixel pitch size on image quality?
For most LED wall applications, 1080p resolution can be achieved using standard pixel pitch and viewing distance guidelines. A lower pixel pitch is recommended for higher resolution. However, the image quality and content you render on the LED wall are important considerations.

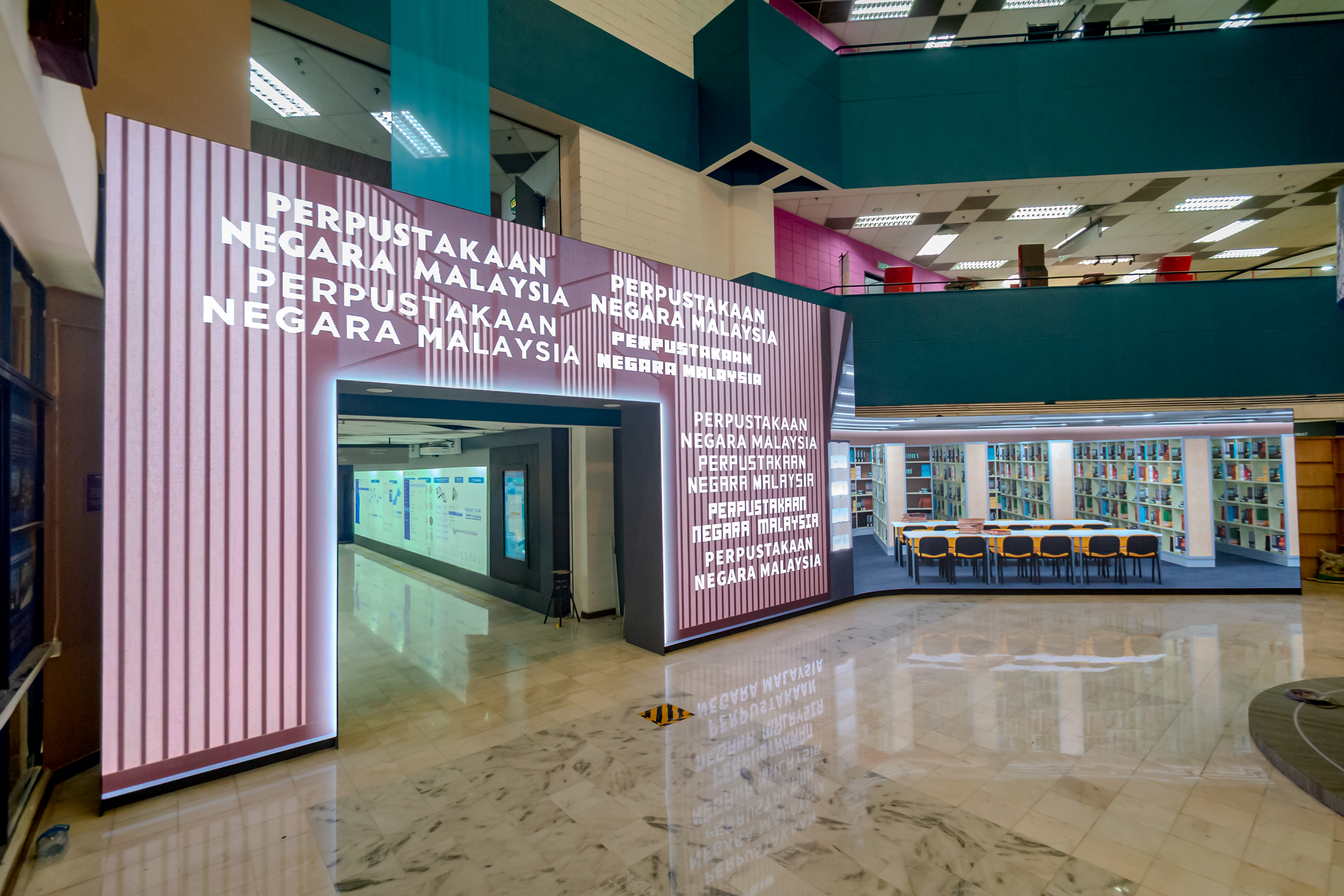

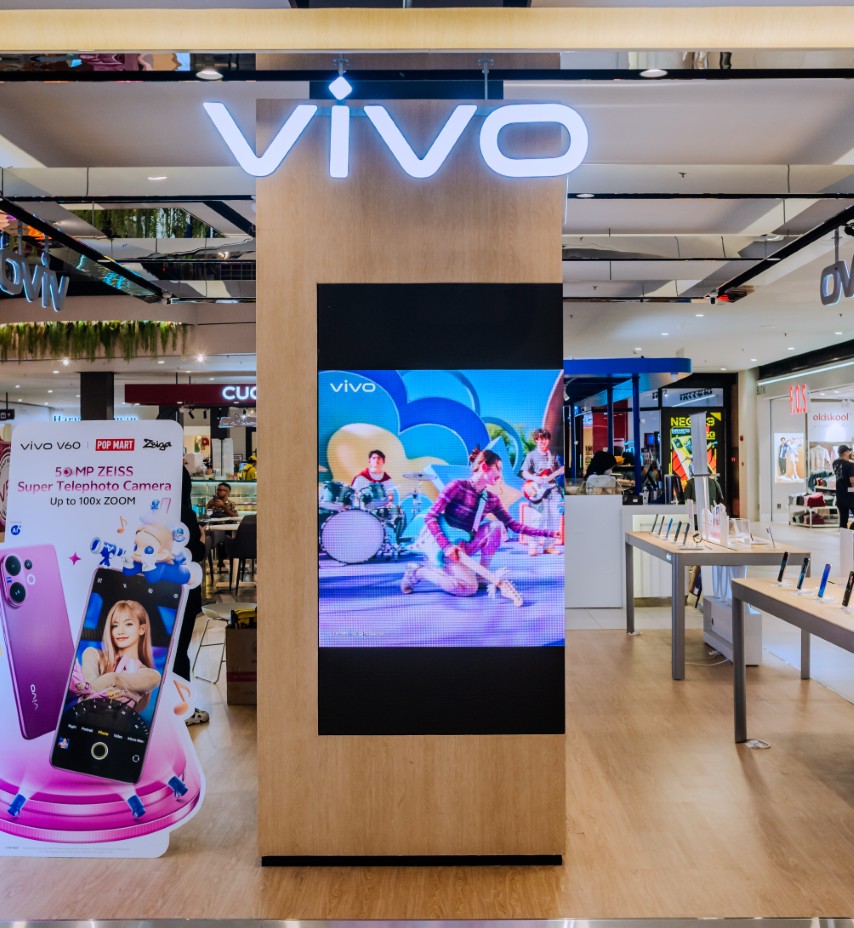

Satisfied Clients &
